Motions in superposed head waves

Features

  • Wave direction: 180 deg
  • Wave lenghs = 1.556 m and 0.283 m
  • Wave hight = 0.030 m and 0.005 m
  • Boat speed = 9 m/s (Froude number = 3.6)

Video animation of boat sailing at 9 m/s in superposed head waves
(2 periods between 3.215 s and 3.80 s)

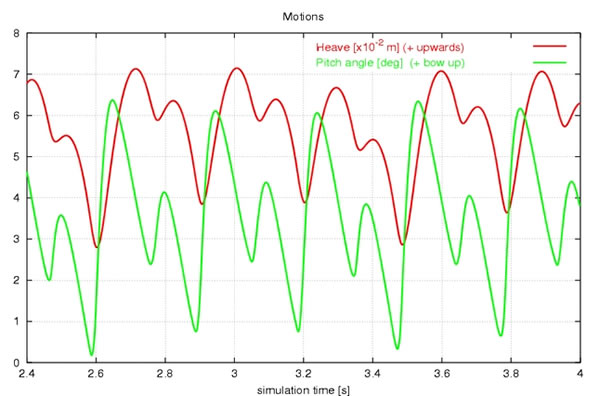

Motions (heave and pitch) in head waves at 3 m/s

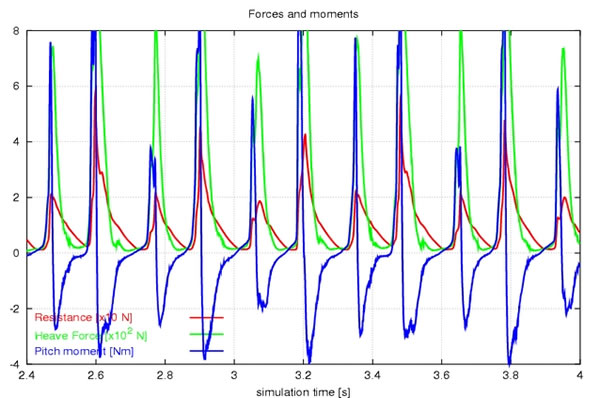

Forces and moments in head waves at 3 m/s
