Motions in oblique waves: heave, pitch and roll

Features

  • Wave direction: 145 deg
  • Wave lengh = 1.556 m
  • Wave hight = 0.020 m
  • boat speed = 9 m/s (Froude number = 3.6)

Video animation of boat sailing at 9 m/s in oblique waves
(2 periods between 1.515 s and 1.86 s)

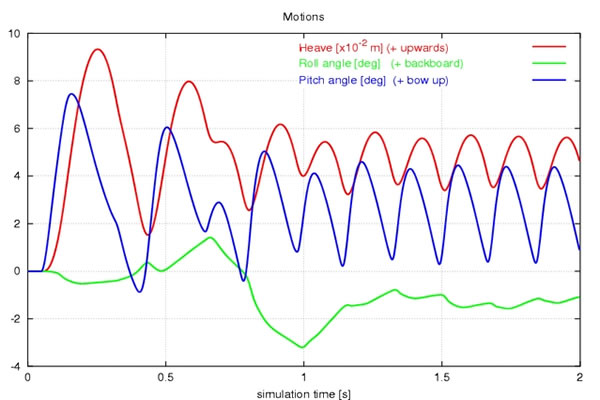

Motions (heave, pitch and roll) in oblique waves
at 9 m/s

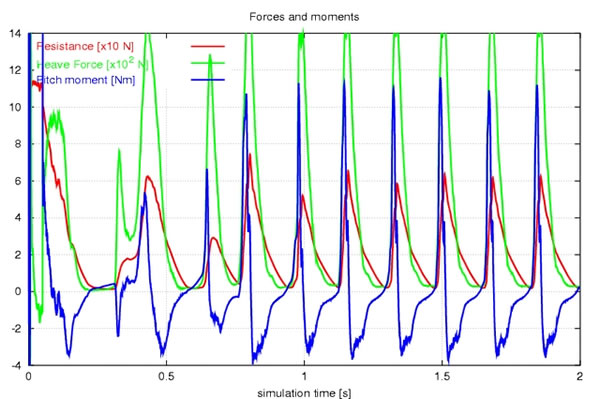

Forces and moments in oblique waves at 9 m/s
